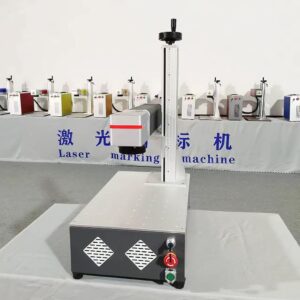

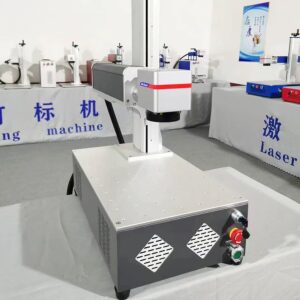

20w 30w 50w 60w Fiber Laser Marking Machine Small type
- 20w 30w 50w 60w Laser Power
- Raycus Max JPT Bwt IPG Laser Source:
- Marking on Metal Materilas, like SS CS Aluminum Gold Sliver Copper etc
- Working Area 100*100mm, 110mm*110mm, 150*150mm, 200*200mm, 300*300mm
All parameters can be customized to fit the customer's needs
PRODUCT CATEGORIES
NEED CONSULTATION?
Share your idea, We’ll find solution for you within 24 hours
20w 30w 50w 60w Fiber Laser Marking Machine Introduction
A fiber laser marking machine is a high-precision tool used for engraving or marking various materials with exceptional accuracy.
Fiber laser marking machines utilize a laser beam generated from rare-earth elements such as erbium, ytterbium, or thulium. These lasers produce a concentrated beam of light, allowing for precise marking on materials like metals, plastics, ceramics, and more. They are renowned for their reliability, low maintenance, and high efficiency compared to other marking technologies.
Advantages Of Rayb Tech Laser Marking Machine:
High Speed: Fiber laser marking machines offer high-speed marking capabilities, enabling quick processing of materials, which increases production efficiency.
High Precision: These machines provide exceptionally precise marking, ensuring accurate reproduction of designs, logos, and text.
Low Maintenance: Fiber lasers have a longer lifespan and require minimal maintenance compared to other marking technologies, reducing downtime and operational costs.
Versatility: They can mark on a wide range of materials, including metals (steel, aluminum, titanium), plastics, ceramics, and composites, making them suitable for diverse manufacturing applications.
Non-contact Process: Fiber laser marking is a non-contact process, which eliminates the risk of material damage or deformation during marking.
Environmentally Friendly: Fiber lasers are energy-efficient and produce minimal waste, making them environmentally friendly compared to traditional marking methods.
The applications of fiber laser marking machines are diverse and extensive. They are widely used in industries such as automotive, aerospace, electronics, medical devices, jewelry, and packaging. These machines can mark serial numbers, barcodes, logos, text, and intricate designs on various surfaces with impeccable detail. Additionally, fiber lasers are capable of marking on curved or irregular surfaces, making them versatile for different manufacturing processes.
From automotive part identification to medical device serialization, the fiber laser marking machine is an indispensable tool for modern manufacturing, providing permanent, high-quality marks with speed and precision.
What materisls dose a fiber marking machine can mark? A wide range of materials, including:
- Metals:
- Steel
- Stainless steel
- Aluminum
- Brass
- Copper
- Titanium
- Gold
- Silver
- Platinum
- Plastics:
- ABS (Acrylonitrile Butadiene Styrene)
- PVC (Polyvinyl Chloride)
- Polycarbonate
- Polyethylene
- Polypropylene
- Acrylic (PMMA – Polymethyl Methacrylate)
- Nylon
- Ceramics and Ceramic Coatings:
- Porcelain
- Ceramic tiles
- Ceramic coatings on metal
- Organic Materials:
- Wood
- Leather
- Paper
- Cardboard
- Composite Materials:
- Carbon fiber
- Fiberglass
- Composite laminates
- Anodized Materials:
- Anodized aluminum
- Some Specialized Materials:
- Silicon
- Tungsten
- Graphite
- Some types of glass (e.g., borosilicate glass)
Features of Rayb Tech Fiber Laser Marking Machine:
Software Compatibility: Most fiber laser marking machines come with user-friendly software that allows for easy design creation, editing, and customization.
Beam Quality: Fiber lasers produce a high-quality beam with excellent focusability, resulting in sharp, clean marks on the material surface.
Marking Depth Control: These machines offer precise control over marking depth, allowing for both surface marking and deep engraving applications.
Integration Capabilities: Fiber laser marking machines can be easily integrated into automated production lines for seamless operation and increased productivity.
Compact Design: Many models feature a compact design, saving valuable floor space in manufacturing facilities.
Overall, fiber laser marking machines offer a combination of speed, precision, versatility, and efficiency, making them an essential tool for modern manufacturing processes.
Product Name | Fiber laser marking machine |
Laser power | 20W/30w/50w/60w |
Laser source brand | MAX/Raycus/IPG/JPT/Lianpin/Bwt |
Laser wavelength | 1064(nm) |
Standard marking area | 110*110mm |
optional marking area | 150*150mm/175*175mm/200*200mm/300*300mm |
Working speed | 0-6000mm/s |
Software | Original JCZ EZCAD software ,supporting Win7/Win8/Win10/Win XP 32/64 bit system |
Min Width | 0.01mm |
Repeat accuracy | ±0.01mm |
Power power | 220V/110v 50/60HZ |
Maximum Power Consumption | 260W |
Cooling Way | Air cooling |
Laser module life | >100,000 hours |
Image Formats | Supports PLT, BMP, DXF, JPG, TIF, AI, PNG, JPG, etc. |
Operating temperature | 0-40℃ |
Frequently Asked Questions (FAQ) – About Fiber Laser Marking Machines
Q:What materials can be marked with a laser marking machine?
A: Laser marking machines can mark a wide range of materials, including metals (steel, aluminum, titanium), plastics, ceramics, glass, wood, and some organic materials.
Q: What types of marks can a laser marking machine create?
A:Laser marking machines can create various marks, including serial numbers, barcodes, QR codes, logos, text, graphics, and even 3D images.
Q: How durable are the marks created by laser marking machines?
A: Marks created by laser marking machines are highly durable and resistant to wear, corrosion, and fading. They are often used for permanent identification and traceability purposes.
Q: Can laser marking machines mark on curved or irregular surfaces?
A: Yes, many laser marking machines are capable of marking on curved or irregular surfaces. Some machines feature rotary attachments or 3D marking capabilities to accommodate such surfaces.
Q: Are laser marking machines safe to use?
A: Laser marking machines are generally safe when used properly. However, operators should follow safety guidelines and wear appropriate protective equipment to prevent exposure to laser radiation.
Q: What maintenance is required for a laser marking machine?
A: Laser marking machines require minimal maintenance compared to other marking technologies. Routine maintenance may include cleaning the lens, checking and adjusting the beam alignment, and replacing consumable parts such as lenses or filters.
Q: Can laser marking machines be integrated into automated production lines?
A: Yes, many laser marking machines are designed for integration into automated production lines. They can be equipped with conveyor systems, robotic arms, and other automation components for seamless operation.
Q: What factors should be considered when choosing a laser marking machine?
A: Factors to consider include the type of material to be marked, desired marking speed and precision, available space for the machine, integration requirements, budget, and any specific features or capabilities needed for the application.
Q: What payment terms can you accept?
A: Any payment is possible for us , like Made-In-Chine on line payment, TT, LC, Western Union, Paypal, E-Checking, Master Card, Cash etc.
Q: Do you have CE document and other documents for customs clearance?
A: Yes,we have, At first we will show you and after shipment we will give you CE/Packing list/Commercial Invoice/Proforma Invoice for customs clearance.
Q: When I got this machine, but I don’t know how to use it. What should I do?
We will send operation video and manual for the machines(Photos/Videos/Manual Book,etc) ,you can learn step by step. Our engineer also can do training online. If needed, we support engineer door training if you need.
Q: If i have problem during use,how to do?
A: If have any problem during use, we can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished. We can also provide door service if you need.
Q: If some problems happen to this machine, what should I do?
A: We provide 2 years source and 1 year whole machine warranty. During the warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.
Q: What’s package, will it protect the products?
A: We have 3 layers package. For the outside, we adopt wooden cases free of fumigation. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic film.
Q: What’s delivery time?
A: Commonly, the lead time is within 3 working days after receiving the payment.
Q: How is the shipping method?
A: As per your actual address, we support shipment by sea, by air, by truck or railway shipping way. Also we can send the machine to your office if you need.
